Circular Volume Damper

  • hchd
    • Icemac Model #
    • Diameter Range: Ø100 mm – Ø500 mm
    • Blade Control: Stepless 0–100% Adjustment
    Delivery Terms: EXW, CFR, CIF, DAP, DDP
    Submit an Inquiry Item can be shipped to all over the world.
    Inquiry Form

      Your Idenfity

      *Your Name:

      Company Name:

      Address:

      Telephone or Mobile/Call Phones:

      Email:

      Your Product Need

      Additional Comments:

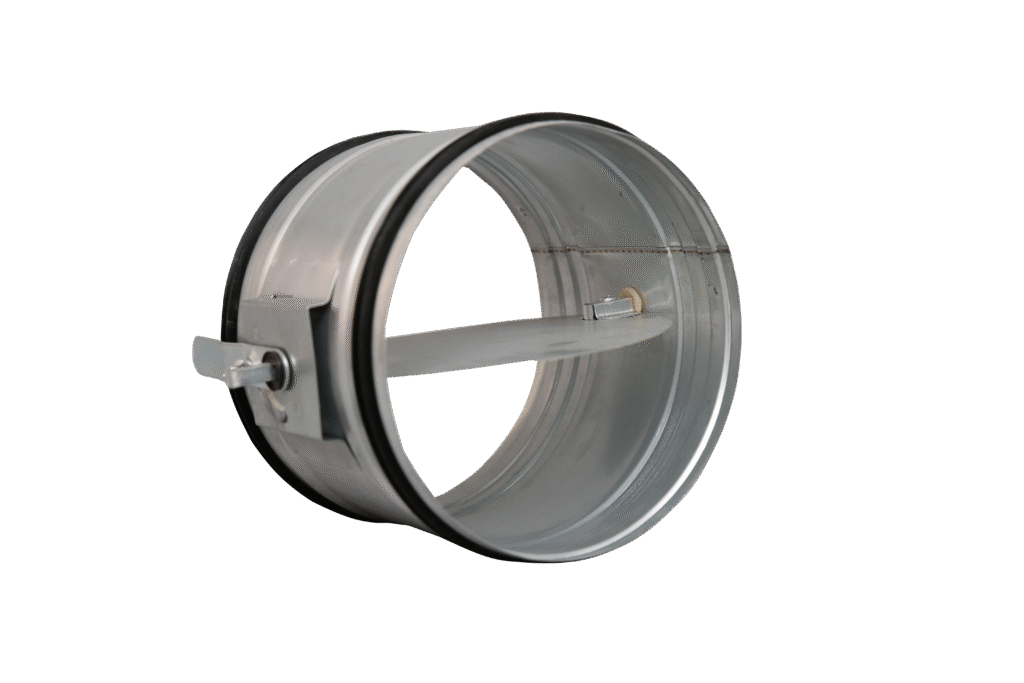

      ICEMAC Circular Volume Damper (IC CVD Series)

      Product Overview

      The ICEMAC Circular Volume Damper (IC CVD Series) provides precise airflow control within circular duct systems ranging from Ø100 mm to Ø500 mm. Engineered from high-quality galvanized steel, this damper ensures robust, corrosion-resistant performance. Its lever-operated locking mechanism allows for exact positioning and secure airflow adjustment from fully open to fully closed. Optional automation compatibility with servo motors and limit switches provides seamless integration into modern HVAC control systems.

      Key Features

      • Corrosion-Resistant Construction – Galvanized-steel casing, blade, and handle offer lasting durability.

      • Adjustable Locking Mechanism – Quadrant lever securely fixes the damper blade position.

      • Servo-Motor Ready – Compatible with 24 V / 230 V servo motors for automated control.

      • Optional Perforated Blade – Reduces pressure drop and operational noise levels.

      • Flexible Aesthetic Finishing – Available in all RAL colors to match architectural requirements.

      Applications

      • Supply-Air Branches – Precision control and balancing of airflow to HVAC terminals.

      • Exhaust-Air Systems – Adjusting extraction rates for balanced ventilation.

      • Main Duct Sections – Airflow isolation and throttling during maintenance or commissioning.

      Advantages

      • Stepless Airflow Control – Continuous blade adjustment from 0% (closed) to 100% (fully open).

      • Easy Installation – Direct screw mounting ensures accurate alignment and airtight sealing.

      • Noise and Turbulence Reduction – Optional perforated blade minimizes airflow disruption.

      • Enhanced HVAC Efficiency – Facilitates optimal airflow management and system balancing.

      Technical Specifications

      Specification Details
      Material Galvanized-steel casing, blade, and handle; optional PVC handle
      Nominal Diameters (mm) 100, 125, 150, 160, 200, 250, 300, 315, 355, 400, 450, 500
      Effective Diameters ØD (mm) 95, 120, 145, 155, 195, 245, 290, 305, 345, 390, 440, 490
      Blade Adjustment 0–100% stepless control via quadrant lever locking mechanism
      Surface Finish Standard: Galvanized; Optional: Any RAL color powder-coated
      Installation Method Screw assembly to circular ducts
      Automation Options Servo motor (24 V / 230 V), Limit switch for blade position feedback
      Blade Options Solid or Ø5 mm perforated galvanized steel
      Sound Level Management Perforated blade option reduces operational noise
      Integration Manual or automated operation, compatible with HVAC control systems
      Icemac has right to change any dimension or specification.
