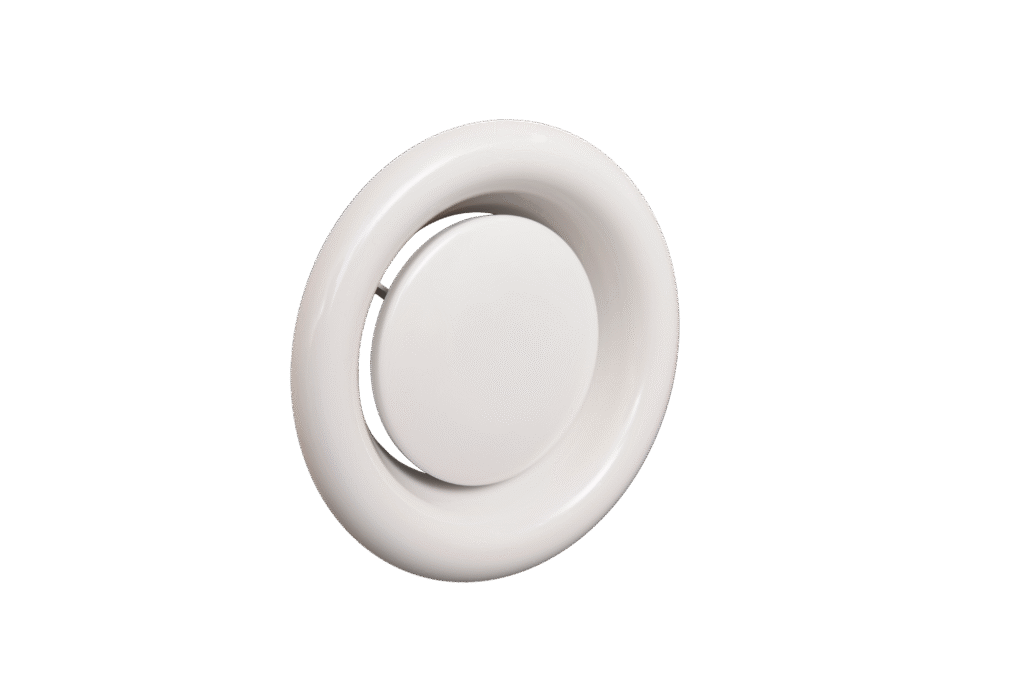

Disc Valve Diffuser

  • hga2
    • Icemac Model #
    • Size Range: Ø100 mm – Ø200 mm
    • Operation: Manually Adjustable Air Volume Core
    Delivery Terms: EXW, CFR, CIF, DAP, DDP
    Submit an Inquiry Item can be shipped to all over the world.
    Inquiry Form

      Your Idenfity

      *Your Name:

      Company Name:

      Address:

      Telephone or Mobile/Call Phones:

      Email:

      Your Product Need

      Additional Comments:

      ICEMAC Disc Valve (IC-DV Series)

      Product Overview

      The ICEMAC IC-DV Series Disc Valve is engineered for supply and exhaust air control in localized ventilation systems. It features a manually adjustable center cone that allows precise volume control, making it ideal for residential, commercial, and hospitality applications. Designed for ceiling or wall installation, the IC-DV combines functional airflow regulation with a clean, compact aesthetic that integrates seamlessly into any space.

      Key Features

      • Adjustable Airflow Core – Rotating central disc allows manual regulation of airflow volume.

      • Compact, Low-Noise Design – Ensures quiet operation, ideal for sanitary and enclosed areas.

      • Moisture-Resistant Build – Suitable for humid environments such as bathrooms and shower rooms.

      • Durable Steel Construction – Spun-formed DKP sheet steel provides long-lasting structural integrity.

      Applications

      • Restrooms & WCs – Quiet, efficient exhaust or supply ventilation.

      • Bathrooms & Showers – Performs reliably in moisture-laden spaces.

      • Service Rooms & Storage Areas – Localized ventilation with simple manual control.

      • Residential & Hospitality Spaces – Aesthetically clean finish for visible ceiling terminations.

      Advantages

      • Precise Volume Control – Adjustable center disc enables on-site airflow balancing.

      • Versatile Installation – Mountable in ceilings or walls with optional subframe or spot spring mounting.

      • Durable Finish – Electrostatic powder coating resists corrosion and maintains a clean appearance.

      • Discreet Aesthetics – Smooth, minimal profile fits architectural finishes.

      Technical Specifications

      Specification Details
      Material Spun-formed DKP sheet steel (external frame and center core)
      Mounting Methods Subframe screw installation (standard), Spot spring mounting (optional)
      Surface Finish Standard: Electrostatic Powder Coating (RAL 9010 / RAL 9016)
      Optional: Custom RAL colors
      Nominal Diameters (ØW) Ø100 mm, Ø125 mm, Ø150 mm, Ø200 mm
      Accessories Subframe (SB) for stable ceiling or wall installation
      Blade Opening Options Adjustable center cone with 6 mm or 15 mm opening positions
      Effective Velocity (Ueff) 2.5 – 18.3 m/s (depending on blade opening and size)
      Airflow Rate (V) 30 – 350 m³/h
      Pressure Drop (ΔPt) 21 – 90 Pa
      Sound Level (SPL) 13 – 44 dBA
      Installation Type Ceiling-mounted or wall-mounted
      Icemac has right to change any dimension or specification.
