Floor Diffuser

  • IC FD 2
    • Icemac Model #
    • Airflow Range (V): 50 – 200 m³/h
    • Throw Distance (X): 0.5 – 1.4 m
    Delivery Terms: EXW, CFR, CIF, DAP, DDP
    Submit an Inquiry Item can be shipped to all over the world.
    Inquiry Form

      Your Idenfity

      *Your Name:

      Company Name:

      Address:

      Telephone or Mobile/Call Phones:

      Email:

      Your Product Need

      Additional Comments:

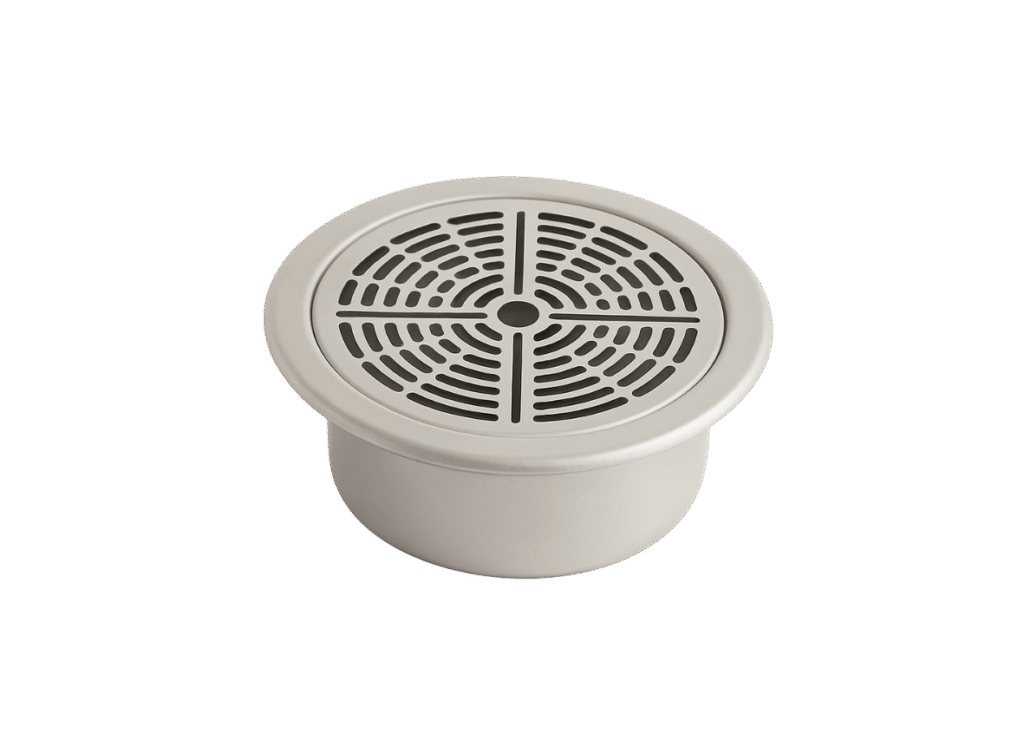

      ICEMAC Floor Diffuser (IC-FD Series)

      Product Overview
      The ICEMAC Floor Diffuser (IC-FD Series) is a compact, high-performance air terminal designed for raised-floor ventilation systems. It delivers quiet, low-velocity airflow directly into the occupied zone, ensuring occupant comfort in underfloor air distribution (UFAD) systems. Built from spun 1.2 mm DKP steel and optionally equipped with a washable filter, it offers robust durability and improved indoor air quality, especially in retrofit and open-plan commercial applications.

      Key Features

      • Underfloor Air Distribution (UFAD) – Enables conditioned air delivery at floor level for energy-efficient ventilation.

      • Compact & Load-Resistant Build – One-piece spun steel construction supports high foot traffic without deformation.

      • Low-Turbulence Delivery – Engineered for quiet and smooth airflow in sensitive environments.

      • Tool-Free Installation – Drops directly into raised floor openings without brackets, screws, or fixings.

      Applications

      • Open-Plan Offices & Co-Working Spaces – Modular and relocatable airflow without ceiling-based ducts.

      • Data Centers & Server Rooms – Targeted airflow directly to equipment zones.

      • Control Rooms & Conference Halls – Delivers acoustically discreet ventilation at floor level.

      • Commercial Retrofits – Ideal for spaces where overhead air distribution is not feasible.

      Advantages

      • Washable Filter Option – Enhances air quality in recirculating systems (POL 20/6 filter).

      • Aesthetic & Functional – Blends into floor finishes with clean design and smooth airflow.

      • Custom Finishes Available – Standard white options or full RAL range upon request.

      • Space-Saving Design – Minimal height requirements support shallow floor voids.

      Technical Specifications

      Specification Details
      Material 1.2 mm DKP sheet steel, spun into a single-piece body
      Standard Sizes (ØW) Ø150 mm, Ø200 mm
      Effective Area (Aeff) Ø150 mm: 0.005 m²
      Ø200 mm: 0.009 m²
      Airflow Range (V) 50 – 200 m³/h (based on size and velocity)
      Effective Velocity (Ueff) 2.5 – 6.3 m/s
      Throw Distance (X) 0.5 – 1.4 m (localized, low-velocity comfort zone)
      Pressure Drop (ΔPt) 7 – 65 Pa
      Sound Level (SPL) 18 – 44 dBA
      Surface Finishes Standard: RAL 9010 / RAL 9016 powder coating; Optional: Custom RAL
      Mounting Method Drop-in installation into raised floor panels, no fixings required
      Optional Accessories POL 20/6 Washable Filter
      Icemac has right to change any dimension or specification.
