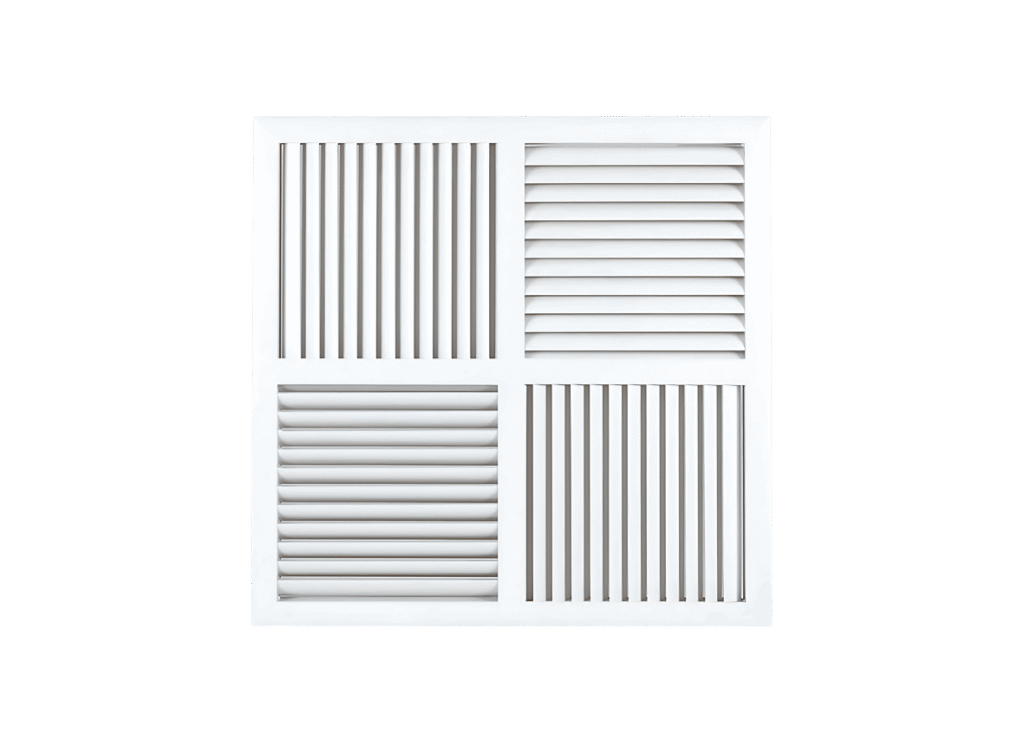

Multi Directional Ceiling Diffuser

  • Untitled design (87)
    • Icemac Model #
    • Airflow Range: Up to 6000+ m³/h
    • Blade Configuration: Fixed or Adjustable for Seasonal Use
    Delivery Terms: EXW, CFR, CIF, DAP, DDP
    Submit an Inquiry Item can be shipped to all over the world.
    Inquiry Form

      Your Idenfity

      *Your Name:

      Company Name:

      Address:

      Telephone or Mobile/Call Phones:

      Email:

      Your Product Need

      Additional Comments:

      ICEMAC Multi-Directional Ceiling Diffuser (IC-MD Series)

      Product Overview
      The ICEMAC IC-MD Series Multi-Directional Ceiling Diffuser is designed to deliver efficient and uniform air distribution in medium to large spaces with ceiling heights of 3.5 meters and above. Available in both fixed and adjustable blade versions, it offers flexible performance for cooling and heating applications throughout commercial buildings. Its modular square faceplate, aerodynamic blade geometry, and aluminum construction ensure durable, high-induction air diffusion with minimal noise and maximum comfort.

      Key Features

      • Blade Configurations

        • Fixed Blades (IC-MD-F): Stable air distribution pattern.

        • Adjustable Blades (IC-MD-A): Directional control for heating/cooling via manual or servo operation.

      • All-Aluminum Build – Frame and blades made from high-grade extruded aluminum for corrosion resistance and lightweight durability.

      • Tool-Free Maintenance – Easily accessible design for cleaning and blade adjustment.

      • Architectural Aesthetics – Clean square faceplate with optional custom finishes for visual harmony with ceiling systems.

      Applications

      • Shopping Malls & Atriums – Draft-free air coverage in wide, open areas.

      • Cinemas & Theaters – Quiet, directional comfort with no acoustic interference.

      • Sports Facilities & Gyms – Consistent ventilation over large zones.

      • Conference Halls & Lobbies – Seasonal airflow tuning supports variable occupancy loads.

      Advantages

      • Thermal Adaptability – Adjustable blades support winter (vertical) and summer (horizontal) air delivery.

      • Custom Sizing & Airflow – Multiple face sizes for tailored air distribution.

      • Quick Installation – Secure screw-mounted ceiling or collar attachment.

      • Compatible Accessories – Add plenum boxes, wire mesh, or filters for enhanced function.

      Technical Specifications

      Specification Details
      Material Frame & blades: Extruded aluminum
      Blade Options Fixed (IC-MD-F) or Adjustable (IC-MD-A)
      Control Method (IC-MD-A) Manual lever, handle, or motorized control
      Mounting Method Screw-mounted to duct collar or ceiling surface
      Standard Faceplate Sizes 420×420 mm, 595×595 mm, 770×770 mm, 1040×1040 mm
      Effective Area (Aeff) 0.05 – 0.66 m²
      Airflow Rate (V) 550 – 6000+ m³/h (size & velocity dependent)
      Effective Velocity (Ueff) 0.6 – 7.8 m/s
      Throw Distance (Xmin – Xmax) 2.1 – 19.4 m
      Pressure Drop (ΔPt) 5 – 94 Pa
      Sound Level (SPL) 20 – 62 dBA
      Surface Finish Standard: RAL 9010 / RAL 9016 powder-coated
      Optional: Anodized or custom RAL
      Optional Accessories Plenum Box (PB), Wire Mesh (WM), Servo Motor (SM)
      Icemac has right to change any dimension or specification.
