Round Duct Grille

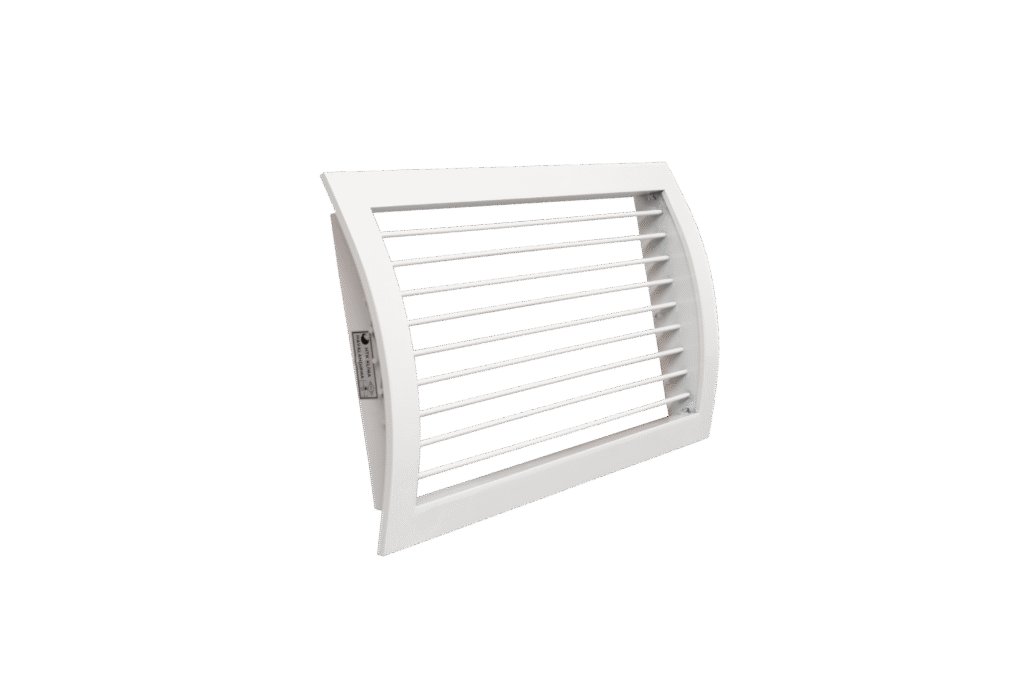

  • TEK SIRA YKM
    • Icemac Model #
    • Effective Area (Aeff): 0.007 m² – 0.288 m² (based on size and type)
    • Effective Velocity (Ueff): 1.5 – 4.6 m/s
    Delivery Terms: EXW, CFR, CIF, DAP, DDP
    Submit an Inquiry Item can be shipped to all over the world.
    Inquiry Form

      Your Idenfity

      *Your Name:

      Company Name:

      Address:

      Telephone or Mobile/Call Phones:

      Email:

      Your Product Need

      Additional Comments:

      ICEMAC Round Duct Grille (IC-RG Series)

      Product Overview
      The ICEMAC IC-RG Series Round Duct Grille is a high-efficiency terminal device specifically engineered for direct installation into circular duct systems. Designed to perform in both supply and return air applications, it features individually adjustable blades in single or double rows to provide precise directional airflow. The grille’s compatibility with curved duct profiles and low pressure drop design ensures seamless mechanical integration and optimized performance in commercial and industrial HVAC systems.

      Key Features

      • Adjustable Blade Rows – Available in single or double configurations for supply or return control.

      • Duct-Radius Customization – Can be manufactured to match the curvature of circular duct systems.

      • Durable Aluminum Build – Entirely made from extruded aluminum profiles for strength and corrosion resistance.

      • Simple Installation – Screw-mounted directly onto duct surface for secure and vibration-free operation.

      • Variants Available

        • IC-RG-S: Supply grille with directional air throw.

        • IC-RG-R: Return grille optimized for low resistance air extraction.

      Applications

      • Circular duct supply and return systems

      • Exposed mechanical ceiling designs

      • Retail centers, industrial halls, commercial buildings

      • Stairwell ventilation, high wall air distribution

      Advantages

      • Directional Air Control – Individually adjustable blades offer tailored airflow delivery.

      • Architectural Compatibility – Matches exposed ductwork and modern HVAC layouts.

      • Low Pressure Drop – High free area reduces load on ventilation equipment.

      • Optional Damper Integration – Available with opposed blade damper (OD) or parallel damper (PD) for volume control.

      Technical Specifications

      Specification Details
      Material Extruded aluminum (frame and blades)
      Blade Configuration Single or double rows, individually adjustable
      Mounting Type Screw-fixed to round duct casing
      Frame Depths 22 mm or 28 mm
      Face Size Compatibility Custom curved to fit duct radius
      Variants IC-RG-S (Supply), IC-RG-R (Return)
      Finish Options Standard: RAL 9010 / RAL 9016 Powder Coated
      Optional: Anodized or Custom RAL
      Accessory Options Parallel Damper (PD), Opposed Blade Damper (OD)
      Effective Area (Aeff) 0.007 m² – 0.288 m² (based on size and type)
      Airflow Rate (V) 100 – 3000+ m³/h
      Effective Velocity (Ueff) 1.5 – 4.6 m/s
      Throw Distance (X) Up to 14 m (supply type)
      Pressure Drop (ΔPt) 5 – 59 Pa
      Sound Level (SPL) <20 – 36 dBA
      Icemac has right to change any dimension or specification.
