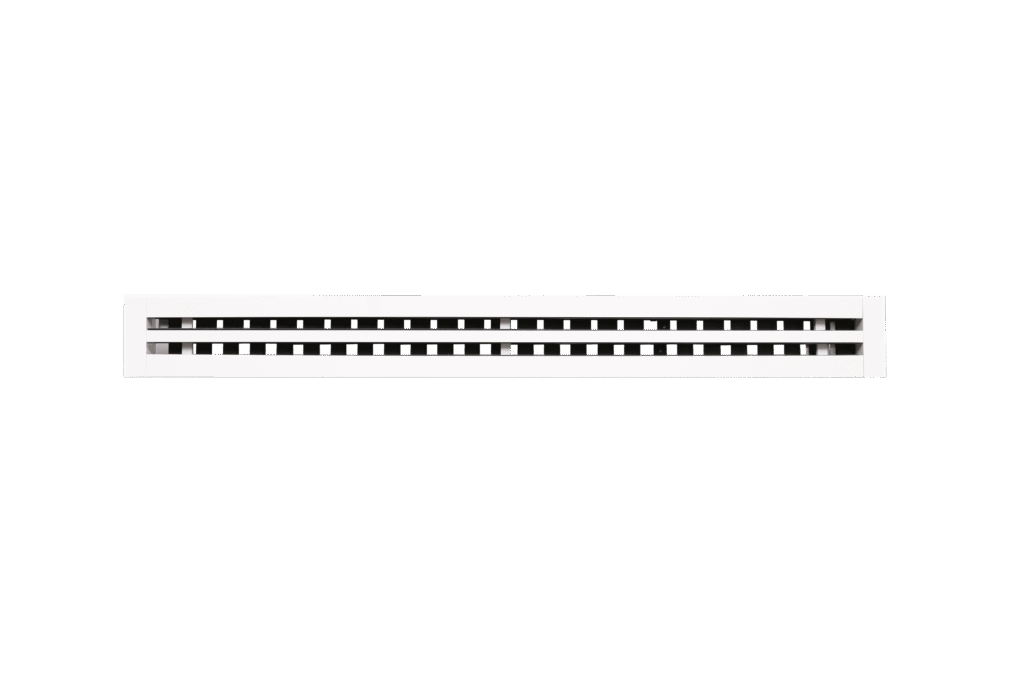

Slot Diffuser

  • hsd
    • Icemac Model #
    • Slot Configuration: Modular 1–4 Slots
    • Material: Extruded Aluminum and PVC Components
    Delivery Terms: EXW, CFR, CIF, DAP, DDP
    Submit an Inquiry Item can be shipped to all over the world.
    Inquiry Form

      Your Idenfity

      *Your Name:

      Company Name:

      Address:

      Telephone or Mobile/Call Phones:

      Email:

      Your Product Need

      Additional Comments:

      Product Overview

      The ICEMAC Slot Diffuser (IC-SD Series) is engineered to deliver efficient air distribution within suspended ceiling systems, blending seamlessly into modern architectural designs. Available for both supply and return air applications, the diffuser ensures precise airflow control with adjustable deflection blades. Manufactured from extruded aluminum and PVC components, it offers durable performance, aesthetic versatility, and low-noise operation, making it ideal for commercial, residential, and hospitality settings.

      Key Features

      • Linear Architectural Design – Clean, discreet linear slots maintain aesthetic ceiling integrity.

      • Precision Airflow Control – Two adjustable aluminum deflection blades per slot (supply type) for directional airflow.

      • Flexible Slot Configuration – Available in standard 1 to 4-slot options, expandable on request.

      • Efficient Volume Control – Integrated PVC damper for precise regulation of air volume.

      • Versatile Installation – Quick bridge-mounted assembly compatible with continuous line installations.

      Applications

      • Commercial Offices and Meeting Rooms – Ensures uniform comfort with minimal visual impact.

      • Retail and Showrooms – Provides unobtrusive, efficient ventilation for display spaces.

      • Hotels and Hospitality Venues – Delivers quiet, directional airflow enhancing guest comfort.

      • Residential Interiors – Offers modern, visually minimalistic air distribution in homes.

      Advantages

      • Architectural Integration – Maintains clean lines and aesthetic coherence in ceiling designs.

      • Customizable Performance – Adaptable slot quantities and modular assembly for diverse requirements.

      • Quiet Operation – Advanced design ensures reduced operational noise levels.

      • Long-term Durability – Premium finishes resist corrosion and retain appearance over time.

      Technical Specifications

      Specification Details
      Material Frame & Blades: Extruded Aluminum; Damper: Black PVC
      Slot Configuration Standard: 1–4 slots (expandable on request)
      Installation Type Bridge-mounted directly onto PB-type plenum box
      Slot Length Standard: 1000 mm modules (extendable with joining accessories)
      Variants IC-SD-R (Return with damper); IC-SD-S (Supply with damper & deflection blades)
      Surface Finishing Standard: Electrostatic Powder Coating (RAL 9010 Pure White, RAL 9016 Traffic White); Optional: Anodized Aluminum, Custom RAL colors
      Effective Area (Aeff) 0.018 – 0.073 m² per 1000 mm (depending on number of slots)
      Effective Velocity (Ueff) 1.1 – 3.0 m/s
      Airflow Range (V) 70 – 500 m³/h (per slot configuration)
      Throw Distance (X) 0.7 – 2.2 m
      Sound Level (SPL) Supply: 18–49 dBA; Return: 24–50 dBA
      Pressure Drop (ΔPt) Supply: 7–58 Pa; Return: 13–91 Pa
      Plenum Box Optional PB-type galvanized steel with internal insulation available
      Icemac has right to change any dimension or specification.
