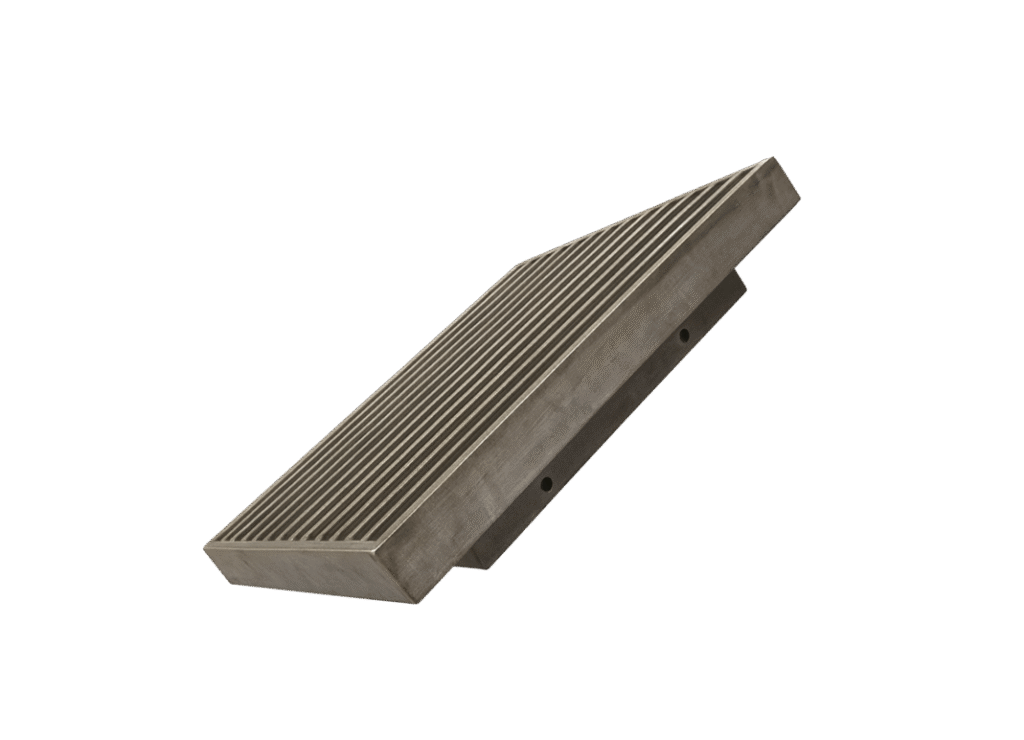

      ICEMAC Linear Floor Grille (IC-LFG Series)

      Product Overview
      The ICEMAC Linear Floor Grille (IC-LFG Series) is specifically designed for high-performance air distribution in raised floor HVAC systems. Engineered for both structural resilience and thermal efficiency, the LFG series combines the appearance of standard linear grilles with reinforced construction to withstand mechanical loads such as foot traffic, equipment, and rolling loads.

      Ideal for data centers, control rooms, and open-plan offices, the LFG provides reliable airflow management while supporting modular floor layouts and easy repositioning without the need for tools or fixings.

      Key Features

      • Load-Bearing Design – Internally reinforced blades and steel shafts ensure durability under live loads.

      • Raised Floor Compatibility – Drop-in installation supports modular floor panels without subframes.

      • Architectural Integration – Flush-mounted aluminum frame offers a seamless, walkable surface.

      • Directional Air Control – Suitable for supply or return applications with low turbulence and pressure drop.

      Applications

      • Data Centers & IT Rooms – Underfloor cooling systems with high thermal demand.

      • Control Rooms & Technical Spaces – High-density areas requiring vibration-resilient airflow.

      • Open Offices with Raised Flooring – Discreet zone-based air distribution below workstation level.

      • Conference Halls & Utility Rooms – Foot-traffic resistant terminals for flexible interior configurations .

      Advantages

      • Modular & Repositionable – No mechanical fixings required; easily lifted for maintenance.

      • Custom Sizes & Finishes – Available in multiple dimensions and RAL/anodized finishes.

      • Filter & Damper Compatible – Integrates with optional volume dampers and washable EU2 filters.

      • Silent, Low-Resistance Flow – Aerodynamic profile for smooth and quiet air distribution.

      Technical Specifications

      Specification Details
      Frame & Blade Material Extruded aluminum
      Blade Reinforcement Fixed to internal steel transmission shafts
      Mounting Method Drop-in floor panel insertion; no screws or fixings
      Frame Depth Options 30 mm or 40 mm
      Standard Widths (W) 200 mm – 1200 mm (in 50 mm increments)
      Standard Heights (H) 200 mm – 600 mm (in 100 mm increments)
      Effective Area (Aeff) 0.007 – 0.397 m² (depending on size)
      Airflow Range (V) 50 – 5000+ m³/h (size-dependent)
      Effective Velocity (Ueff) 2.5 – 6.9 m/s
      Throw Distance (X) 2.8 – 9.9 m
      Pressure Drop (ΔPt) 4 – 33 Pa
      Sound Level (SPL) 9 – 37 dBA
      Optional Accessories Opposed Blade Damper (OD), Washable Filter (EU2)
      Surface Finishes Standard: RAL 9010 / 9016; Optional: Anodized or custom RAL coatings
      Icemac has right to change any dimension or specification.
