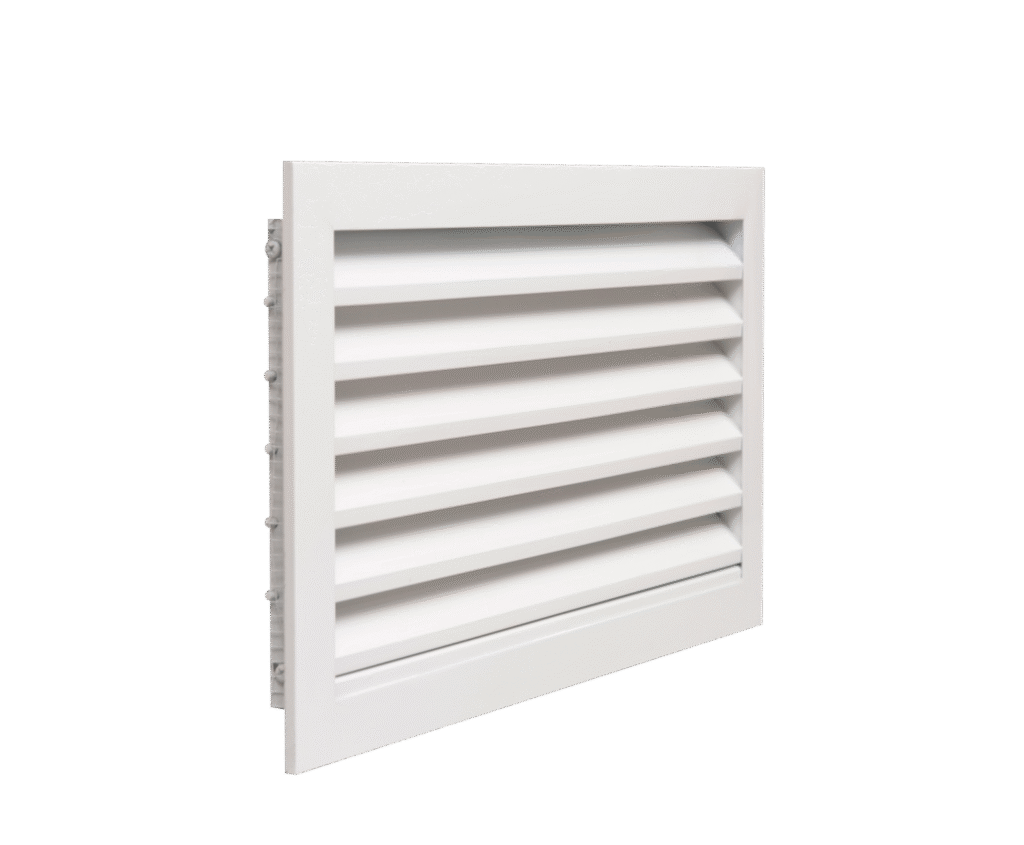

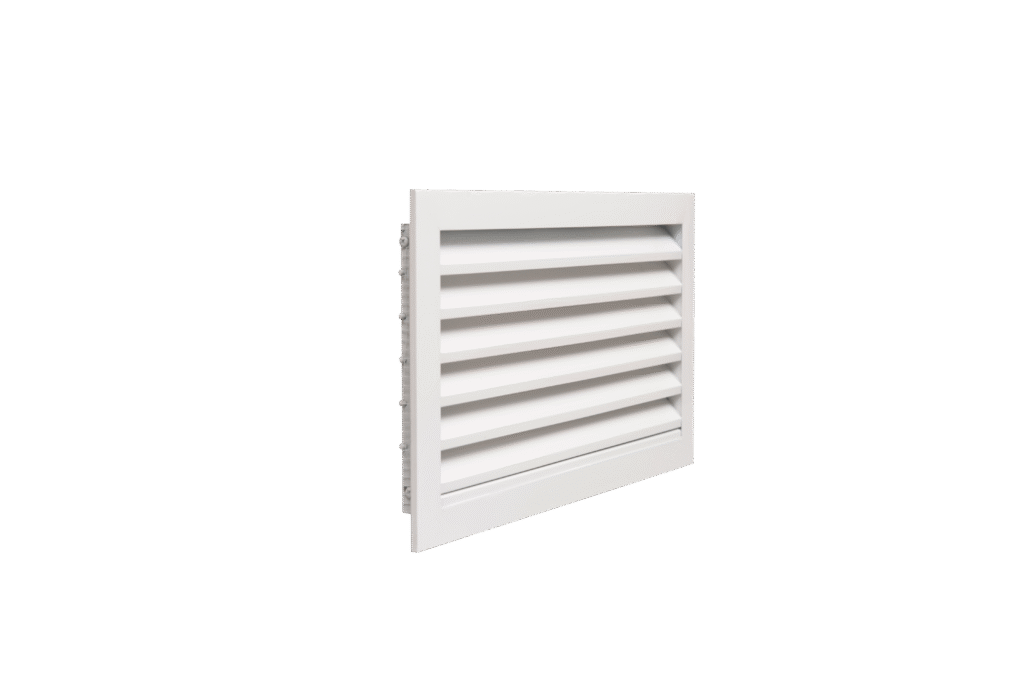

      ICEMAC Air Louvre (IC-AL Series)

      Product Overview

      The ICEMAC Air Louvre (IC-AL Series) is specifically designed for effective air intake and exhaust in external wall installations. Featuring aerodynamic blade geometry, the louvers ensure efficient airflow while providing reliable weather resistance and protection against foreign objects. Manufactured from corrosion-resistant extruded aluminum, the IC-AL series offers robust performance with options for manual control and integrated screening solutions, ideal for commercial, industrial, and residential applications.

      Key Features

      • Aerodynamic Blade Design – Ensures efficient airflow with minimal pressure loss and effective weather protection.

      • Durable Construction – Corrosion-resistant extruded aluminum frame and blades for long-term reliability.

      • Manual Adjustability (Optional) – Handle-operated curved blades allow customizable airflow control.

      • Protective Screening Options – Choice of galvanized wire mesh or aluminum fly screens to prevent debris and insects.

      Applications

      • Mechanical Intake and Exhaust Zones – Provides weather-resistant ventilation openings.

      • Exterior HVAC Terminals – Suitable for building façade penetrations and duct terminations.

      • Restrooms and WCs – Offers controllable natural ventilation with manually adjustable curved blades.

      Advantages

      • Weather and Debris Protection – Effectively blocks rain, insects, and airborne debris.

      • Architecturally Integrated – Available in multiple finishes to match building aesthetics.

      • Versatile Installation – Surface-mounted, screw-fixed installation simplifies integration.

      • Enhanced Airflow Efficiency – Curved and wide blade variants optimize airflow dynamics.

      Technical Specifications

      Specification Details
      Material Frame & Blades: Extruded Aluminum
      Variants IC-AL-A (Wide Blades), IC-AL-B (Curved Blades), IC-AL-C (Handle Operated Curved Blades)
      Blade Type Fixed wide blades, fixed curved blades, manually adjustable curved blades
      Installation Surface-mounted with screw-fixed installation
      Surface Finish Standard: Electrostatic Powder Coating (RAL 9010 Pure White, RAL 9016 Traffic White); Optional: Anodized Aluminum, Custom RAL Colors
      Effective Area (Aeff) 0.007 m² – 5.094 m² (based on dimensions and blade type)
      Dimension Range (W x H) Width: 100–2500 mm; Height: 100–2500 mm
      Protective Screens Galvanized Wire Mesh (20×20 mm, 6×6 mm), Aluminium Fly Screen (2×4 mm)
      Pressure Drop (ΔP) Supply: 6–176 Pa; Exhaust: 16–208 Pa (depending on airflow rate)
      Airflow Capacity (V) 72 – 108,000 m³/h (based on effective area and airflow velocity)
      Effective Velocity (Ueff) 2.0 – 6.0 m/s
      Icemac has right to change any dimension or specification.
